Sync or MCA mapping mode

The Ketek can collect spectra in what they call “sync” mode. For other detectors this is generally called MCA Mapping Mode. It is used to rapidly collect spectra in response to an external trigger signal that is provided to the TRIG input on the DPP3 based hardware.

In sync mode the Ketek streams data to a UDP port on the IOC computer. The IP address of the IOC and the UDP port to use are parameters to the KetekConfigure command in the startup script.

This driver inherits from the base class asynNDArrayDriver in areaDetector/ADCore. It implements the ArrayCallbacks and WaitForPlugins like most areaDetector drivers. The driver reads the spectra and metadata from the UDP port and copies it into NDArrays of dimensions [NumMCAChannels]. The run-time statistics for each spectrum are copied into NDAttributes attached to each NDArray. The data type of the NDArray depends on the value of the BytesPerBin configuration parameter. It will be NDUInt8, NDUInt16, or NDUInt32 for BytesPerBin = 1, 2, or 3.

The data can be displayed in the MCA record when a sync mode run is in progress. This is done by setting SyncReadMCA.SCAN to a periodic scan rate.

The NDArrays can be used by any of the standard areaDetector plugins. For example, they can be streamed to HDF5, netCDF, or TIFF files.

These are the records for Sync/MCA Mapping Mode. They are contained in ketek.template.

EPICS record names

Record types

drvInfo string

Description

SyncAcquire, SyncAcquire_RBV

busy, bi

KetekSyncAcquire

Writing 1 to this record start a sync mode acquisition, and writing 0 stops the acquisition.

SyncCycleTime, SyncCycleTime_RBV

ao, ai

KetekSyncCycleTime

The acquisition time in sync mode. This is the time that the Ketek will acquire for after receiving a trigger pulse. The time between external trigger pulses must be less than this value.

SyncPoints, SyncPoints_RBV

longout, longin

KetekSyncPoints

The number of spectra to collect in sync mode. The driver will stop acquisition automatically after this number of spectra have been collected.

SyncCurrentPoint

longin

KetekSyncCurrentPoint

The current sync cycle number, i.e. the number of spectra collected so far.

SyncEnabled

bi

KetekSyncEnabled

A flag that indicates that sync mode is correctly configured to stream data to the IOC machine over UDP.

SyncRunning

bi

KetekSyncRunning

A flag that indicates that sync mode is currently active. This is read from the hardware.

SyncReadMCA

bo

N.A.

This record can be periodically scanned to cause the MCA record to display the sync mode spectra. This is useful for monitoring the MCA spectra during a sync mode acquisition.

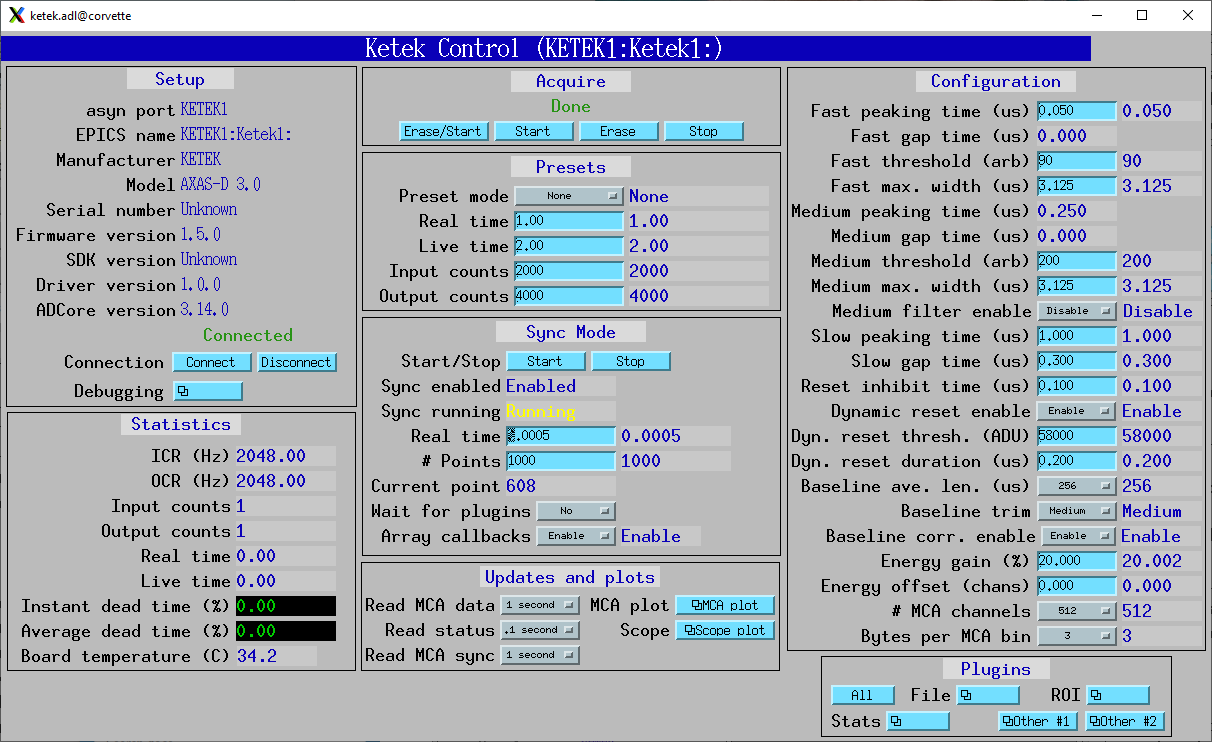

The following is the MEDM screen ketek.adl when the Ketek is collecting in sync mode.

_images/ketek_sync_mode.png

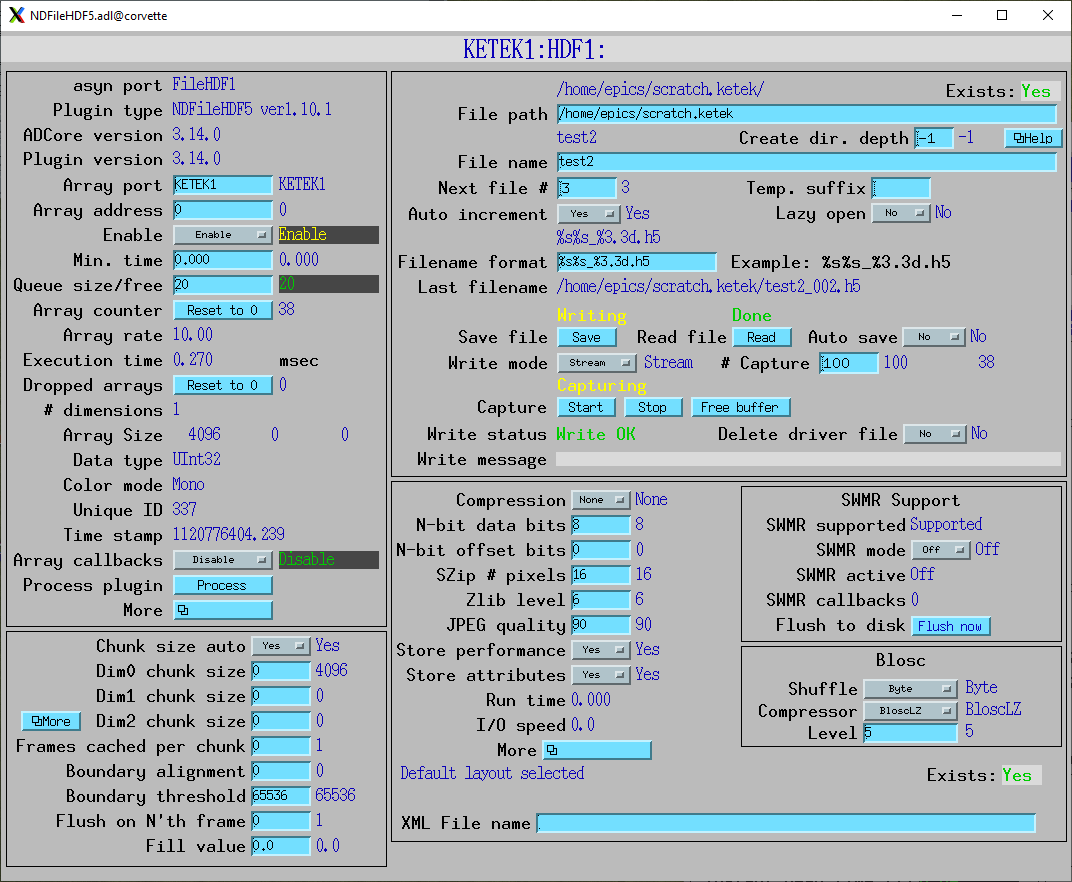

The following is the MEDM screen NDFileHDF5.adl when the Ketek is saving sync mode data to an HDF5 file.

_images/ketek_sync_hdf5.png

The iocKetek directory contains the following files.

  • ketekAttributes.xml This file defines NDAttributes that will be attached to each NDArray in sync mode. These include all of the configuration parameters such as SyncCycleTime, SlowPeakingTime, etc. They also include the MCA record energy calibration coefficients.

  • ketek_hdf_layout.xml This file defines the location of the data and each of the attributes in the HDF5 file.

This example puts the MCA data in /exchange/data. The counting statistics are put in /exchange/RealTime /exchange/LiveTime, etc. The statistics are saved with OnFileWrite, so they are saved for each spectrum in the file. The configuration attributes defined in ketekAttributes.xml are saved in /KetekParameters, and are saved with OnFileClose, so they are only saved once in each file, not for each spectrum.

This is the output of h5dump --contents for an HDF5 file saved in syncMode:

(base) [epics@corvette ketek]$ h5dump --contents  test2_018.h5
HDF5 "test2_018.h5" {
FILE_CONTENTS {
 group      /
 group      /KetekParameters
 dataset    /KetekParameters/BaselineAverageLen
 dataset    /KetekParameters/BaselineCorrEnable
 dataset    /KetekParameters/BaselineTrim
 dataset    /KetekParameters/BytesPerBin
 dataset    /KetekParameters/DynamicResetDuration
 dataset    /KetekParameters/DynamicResetEnable
 dataset    /KetekParameters/DynamicResetThreshold
 dataset    /KetekParameters/EnergyCalOffset
 dataset    /KetekParameters/EnergyCalSlope
 dataset    /KetekParameters/EnergyGain
 dataset    /KetekParameters/FastGapTime
 dataset    /KetekParameters/FastMaxWidth
 dataset    /KetekParameters/FastPeakingTime
 dataset    /KetekParameters/FastThreshold
 dataset    /KetekParameters/MediumFilterEnable
 dataset    /KetekParameters/MediumGapTime
 dataset    /KetekParameters/MediumMaxWidth
 dataset    /KetekParameters/MediumPeakingTime
 dataset    /KetekParameters/MediumThreshold
 dataset    /KetekParameters/ResetInhibitTime
 dataset    /KetekParameters/SlowGapTime
 dataset    /KetekParameters/SlowPeakingTime
 dataset    /KetekParameters/SyncCyleTime
 dataset    /KetekParameters/SyncPoints
 group      /defaults
 dataset    /defaults/NDArrayEpicsTSSec
 dataset    /defaults/NDArrayEpicsTSnSec
 dataset    /defaults/NDArrayTimeStamp
 dataset    /defaults/NDArrayUniqueId
 dataset    /defaults/timestamp
 group      /exchange
 dataset    /exchange/ICR
 dataset    /exchange/InputCounts
 dataset    /exchange/LiveTime
 dataset    /exchange/OCR
 dataset    /exchange/OutputCount
 dataset    /exchange/RealTime
 dataset    /exchange/data
 }
}

These files can be modified as desired to save the data and metadata in different groups with different dataset names. The names of the files are set in the Attributes section of the ketek.adl and the XML File Name section of the NDFileHDF5.adl screen.

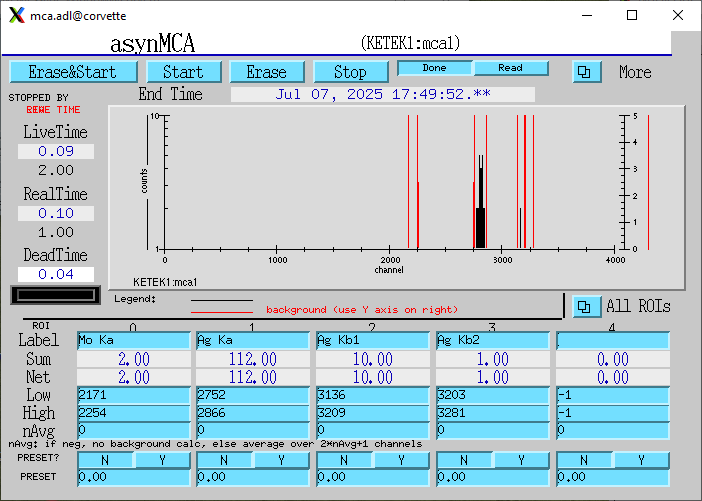

The following is the MEDM screen mca.adl when the Ketek is collecting in sync mode and SyncReadMCA is processing the MCA record at 1 Hz.

_images/ketek_sync_mca.png

Performance

The following table shows the maximum number of pixels/s for sync/MCA mapping mode as a function of the the number of MCA channels in the spectrum [512, 1024, 2048, 4096, 8192] and the number of BytesPerBin [1, 2, 3]. The tests were done under the following conditions:

  • SyncPoints = 1000

  • ArrayCallbacks = Enable

  • WaitForPlugins = Yes

  • SyncCycleTime = 0.0005

The Ketek was triggered by an external programmable pulse generator. The pulse duty cycle was 50%. The pulse generator was programmed to output 1000 pulses.

The pulse frequency was increased until the sync mode acquisition no longer collected the requested number of pixels.

KETEK provided information on the maximum rate should be possible in each mode with 1 and 2 bytes/bin. This value is also listed in the table

Maximum cycle rate in Hz (spectra/second)

MCA Channels

BytesPerBin=1
KETEK specification

BytesPerBin=1
measured

BytesPerBin=2
KETEK specification

BytesPerBin=2
measured

BytesPerBin=3
KETEK specification

BytesPerBin=3
measured

512

2127

1200

1666

1550

N.A.

1000

1024

1666

900

833

500

N.A.

400

2048

833

500

454

350

N.A.

300

4096

454

350

232

225

N.A.

160

8192

232

225

119

120

N.A.

120
